科学技術創成研究院 フロンティア材料研究所 の細川秀樹教授と Volodymyr Chernenko 特任教授の論文が、Journal of Alloys and Compounds に掲載されました。

“Compression cycling and magnetic response of single crystalline Ni-Mn-Ga particles/polymer composite: In-situ and ex-situ study”
https://doi.org/10.1016/j.jallcom.2023.173236

＜要旨＞

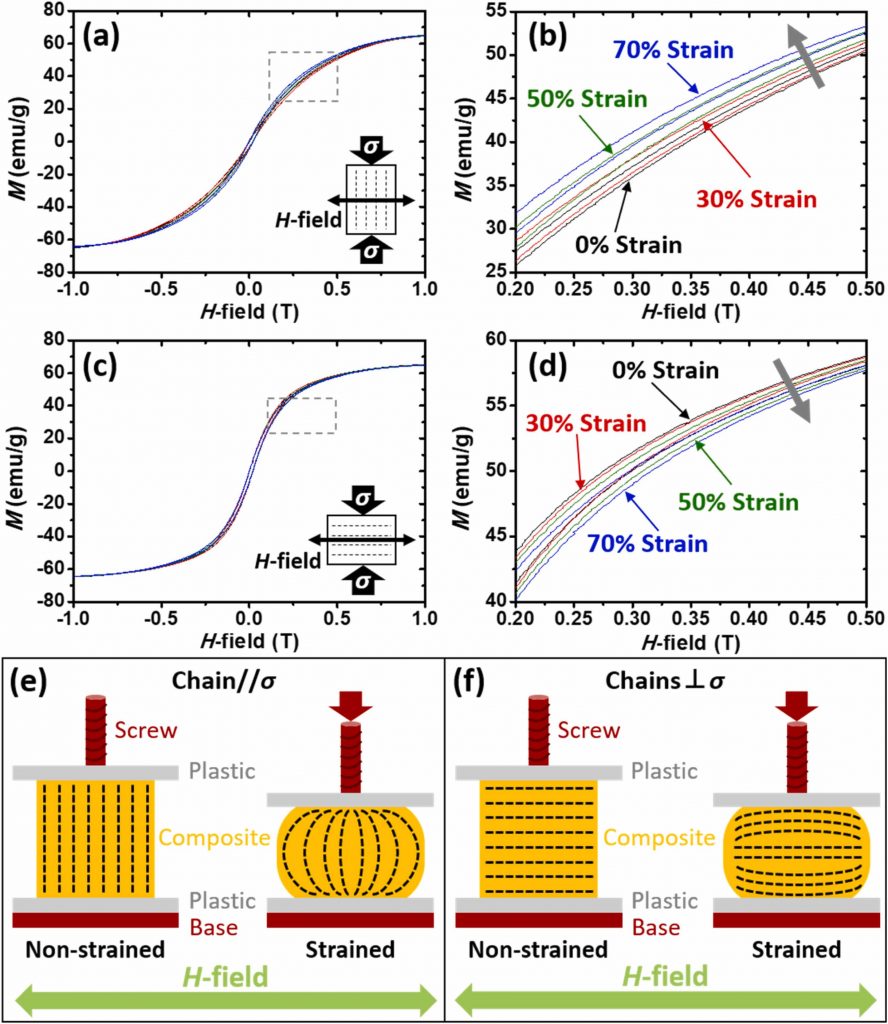

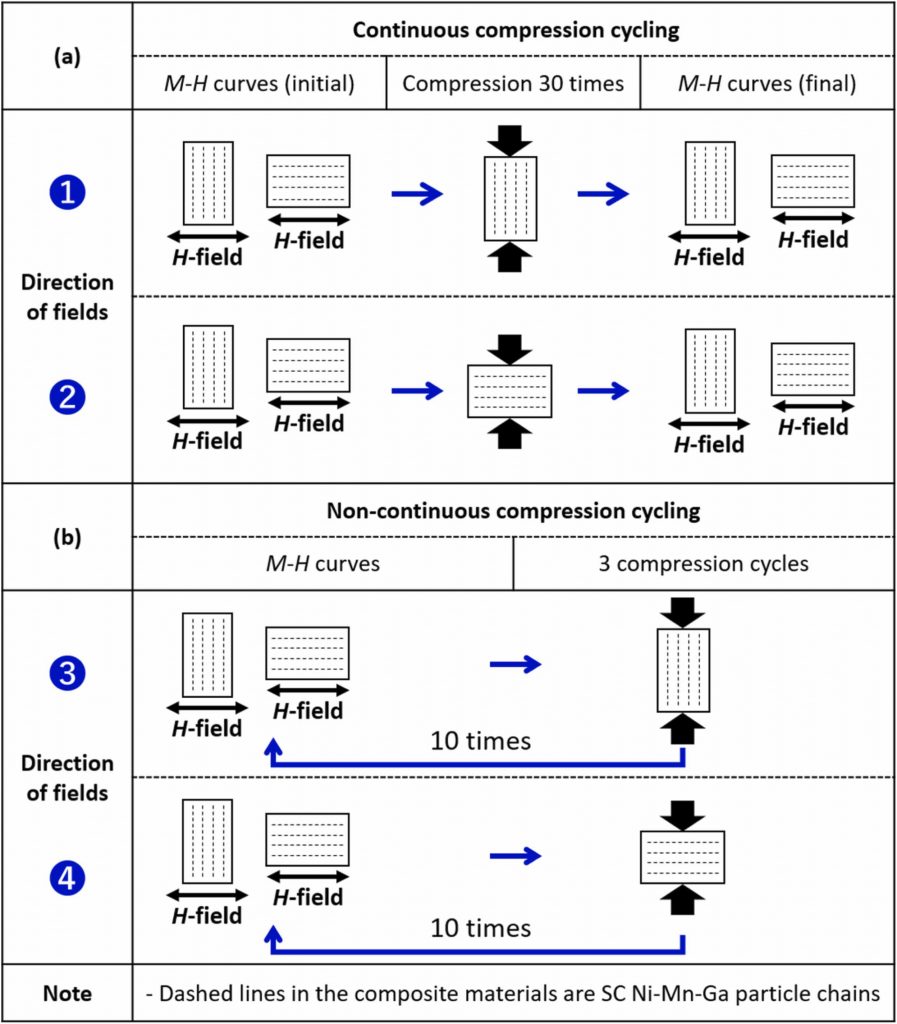

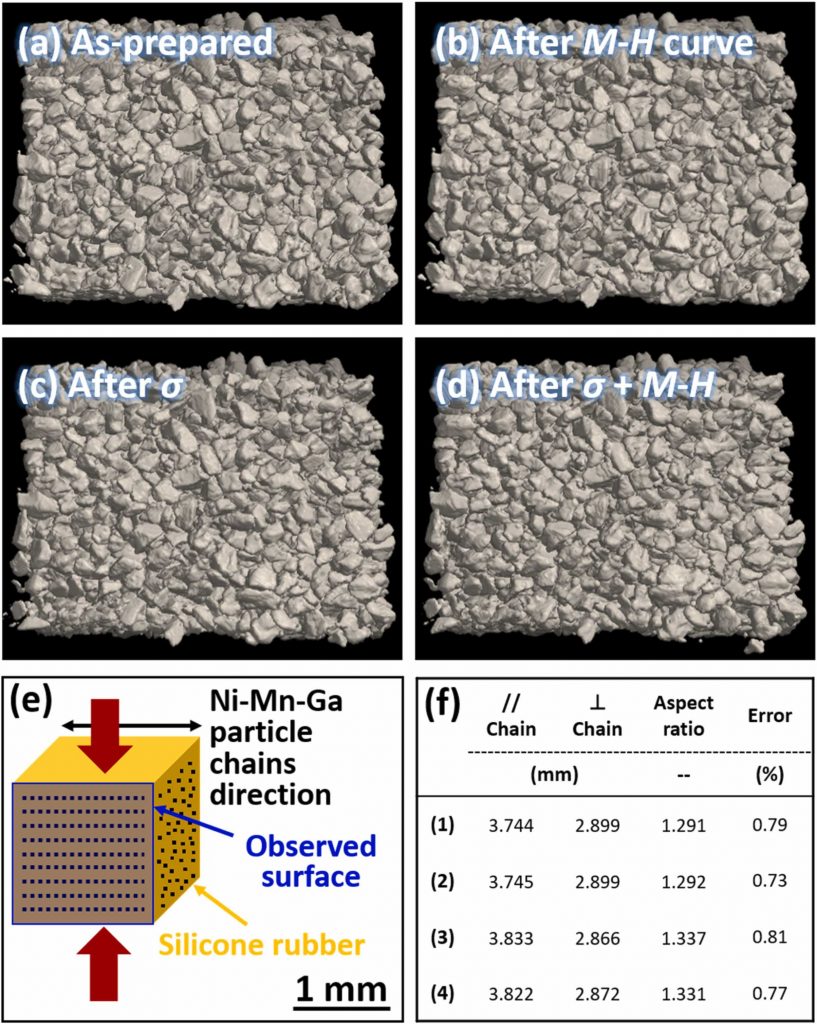

Ni-Mn-Ga particles/polymer composites are new magnetostrain active materials suitable for actuation and sensing. In the present work, we prepared mechanically anisotropic samples of the “30 vol% single crystalline Ni-Mn-Ga particles/silicone” composite material and systematically studied their cyclic stress-strain (S-S) evolutions along and perpendicular to the particle chains, while monitoring changes of magnetization curves. Four different compression cycling routes with the strain amplitude of 30% were explored. Magnetic measurements were served as the probes to indirectly detect microstructure changes of composite samples, whereas X-ray micro-CT images, alongside dimensions control of samples, were used for direct microstructural observations. The influences of the compression cycling routes on the parameters of S-S behaviors, such as an output stress, effective stiffness, and stress hysteresis, were revealed. It was found that the composite material after achieving equilibrium showed a rather good compression cycling stability of the mechanical and magnetic properties. It was revealed that composites being strongly deformed either along easy-magnetization axis (along the particle chains) or along hard-magnetization axis (perpendicularly to the particle chains) exhibited a magnetically harder behavior along the particle chains and magnetically easier behavior in the orthogonal direction, respectively. These unusual effects of a strong deformation of composite on its magnetization processes were discussed in terms of the particle rearrangements in the chains.
