Controlling structure of fluorite-like hydrolyzed coordination clusters of Zr(IV) and Hf(IV) by amino acid derivative

Controlling structure of fluorite-like hydrolyzed coordination clusters of Zr(IV) and Hf(IV) by amino acid derivative

WRHI Newsおすすめ

Published

  (Laboratory for Zero-Carbon Energy / Dr. Koichiro Takao & Dr. Satoru Tsushima)

“”Fluorite-like hydrolyzed hexanuclear coordination clusters of Zr(IV) and Hf(IV) with syn-syn bridging N,N,N-trimethylglycine in soft crystal structures exhibiting cold-crystallization”

Inorg. Chim. Acta DOI:10.1016/j.ica.2021.120622

For details, click here.



<Abstract>

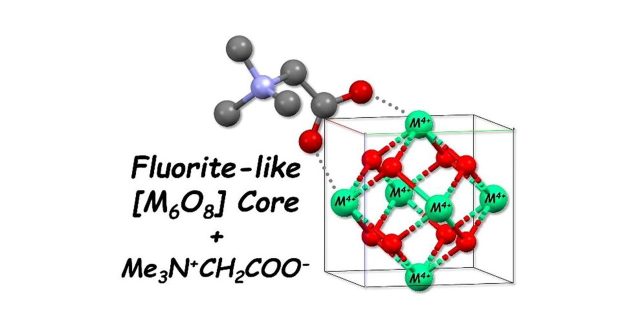

Tetravalent metal ions are hydrolyzed under presence of N,N,N-trimethylglycine hydrochloride (betaine hydrochloride, [Hbet]Cl) in aqueous solutions to afford [M63-O)43-OH)4(μ-bet)8(κ-bet)4(H2O)4]12+ (M4+ = Zr4+ (1), Hf4+ (2)) as hydrated perchlorate salts. These compounds were characterized by single crystal X-ray diffraction, elemental analysis and IR spectroscopy. As a result, we have found that fluorite-like [M6O8] coordination clusters are formed through octahedral arrangement of six M4+ linked by μ3-O atoms. Additionally, each pair of neighboring M4+ are connected by the μ-bet ligand through a syn-syn bridging coordination of its carboxylate moiety. This interaction seems to prevent further growth of the fluorite structure leading to formation of MO2. It was difficult to directly distinguish each μ3-O atom to be μ3-OH or μ3-O2− due to its strongly anisotropic thermal displacement in the obtained structures. Bond valence sum analysis suggested that four μ3-OH and four μ3-O2− are alternately arranged in the [M6O8] core motifs. Indeed, such a symmetric structure of [M63-O)43-OH)4] was confirmed in another phase of 1 at 296 K, where 1 transforms to a monoclinic structure (1′). The number of ClO4 counteranions found in the structure determination is not enough to compensate + 12 charge of [M63-O)43-OH)4(μ-bet)8(κ-bet)4(H2O)4]12+ in any unit cells of 11′ and 2. Instead, large solvent/ion accessible voids have been actually observed in their crystal structures, indicating that the missing ClO4 are located therein and are significantly disordered to make them invisible in the crystallography. DSC analysis revealed that ClO4 and H2O/H3O+ in the crystal lattice of 1 undergo unique structure relaxation and rearrangements pronounced by cold-crystallization to induce the phase transition from 1 to 1′ with elevating temperature.
