物質理工学院　森川淳子教授とSaulius Juodkazis特任教授の国際共著論文

“Optical anisotropy of glancing angle deposited thin films on nano-patterned substrates”

が、Optical Materials Express   に掲載されました。（DOI:10.1364/OME.451669 ）

詳しくはこちら　



<Abstract>

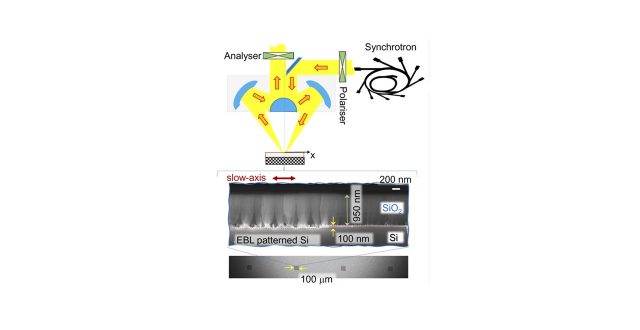

This study has demonstrated that 3D columnar micro-films/coatings can be deposited over pre-patterned surfaces with sub-micrometer periodic patterns. Four-angle polarisation analysis of thin (0.4 − 1~μm) Si and SiO₂ films, evaporated via glancing angle deposition (GLAD) at 70° to the normal, was carried out in reflection mode using synchrotron infrared microspectroscopy at the Australian Synchrotron. The angular dependence of absorbance followed A(θ) ∝ cos ² θ, confirmed for Si substrates patterned by electron beam lithography and plasma etching, which were used to make checkerboard patterns of Λ = 0.4~μm period on Si. Retardance control by birefringence of a patterned SiO₂ substrate coated by columnar SiO₂ is promising for UV-visible applications due to the use of the same material to endow polarisation control.
