未来産業技術研究室　田島真吾助教の国際共著論文

“Online interpolation of 5-axis machining toolpaths with global blending”

が、International Journal of Machine Tools and Manufacture   にオンライン掲載されました。（DOI:10.1016/j.ijmachtools.2022.103862 ）

詳しくはこちら　

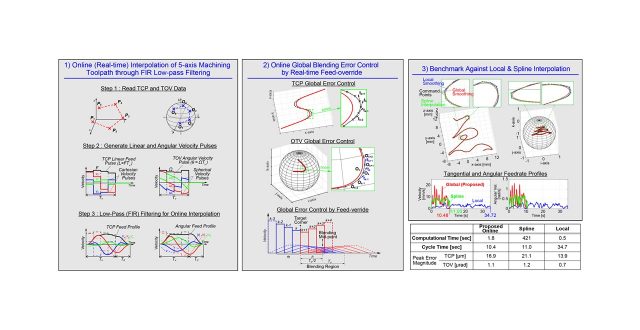

<Abstract>
Modern high-speed 5-axis machining toolpaths consist of densely discretized tool center points (TCP) and tool orientation vectors (TOV). This paper presents a global interpolation technique that can blend very densely discretized 5-axis toolpaths within user defined blending tolerance and interpolate them in real-time using minimal computational expense. Instead of geometric splines, Finite Impulse Response (FIR) low-pass filtering is used to blend TCP and TOV and interpolate them smoothly for synchronized 5-axis motion generation. Global blending errors of TCP and TOV are modeled based on path geometry, tool motion kinematics and dynamics of the FIR filter. These global blending errors are confined by modulating the machining feedrate. In other words, machining feedrate is adjusted, i.e. reduced and increased, to control the global blending accuracy along the 5-axis machining toolpath. A windowing scheme is proposed to solve this new feedrate scheduling problem. Since the proposed interpolation method is based on digital filtering (convolution), it enables online (real-time) interpolation of densely discretized 5-axis machining toolpaths in a real-time and at the same time provides control over the frequency spectrum of interpolated trajectories. The proposed global blending strategy delivers significant reduction in machining cycle-time as compared to conventional local blending techniques and generates smoother, frequency-controlled trajectories with a fraction of the computational effort required as compared to spline-based interpolation. Illustrative examples and experimental results are provided to showcase functionality and validate effectiveness of the proposed technique.
